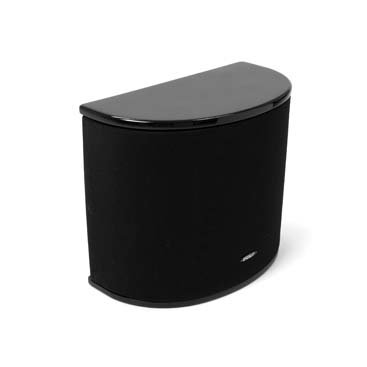

Surround Speaker
Model: V-S
KEY FEATURES
Surround speaker for lifelike effects
High gloss piano black finish
Strong, deep bass from a 5.25-inch woofer with patented Ribbed Elliptical Surround
Clear, accurate highs from aluminum dome tweeter for detailed listening
Proprietary Convergent Source Module (CSM) technology for increased dispersion
PRODUCT OVERVIEW
Available at Acoustic Sound Design , So
Features
Surround speaker for lifelike effects
High gloss piano black finish
Strong, deep bass from a 5.25-inch woofer with patented Ribbed Elliptical Surround
Clear, accurate highs from aluminum dome tweeter for detailed listening
Proprietary Convergent Source Module (CSM) technology for increased dispersion
Specifications
| System Type | Surround channel loudspeaker with switchable bi/di-pole controls and volume attenuation | |
| Impedance | 8 ohms nominal; 4 ohms minimum | |
| Frequency Response | 58Hz-25kHz ± 3dB | |
| Power Handling | up to 125 watts RMS | |
| Dimensions | 9.96" (25.3 cm) H x 12.01" (30.5 cm) W x 6.18" (15.7 cm) D | |
| Sensitivity | 89.5dB | |

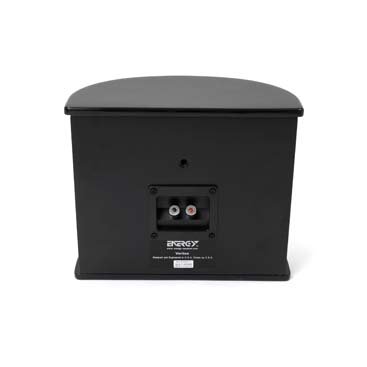

| Inputs | Single 5-way nickel-plated binding post | |

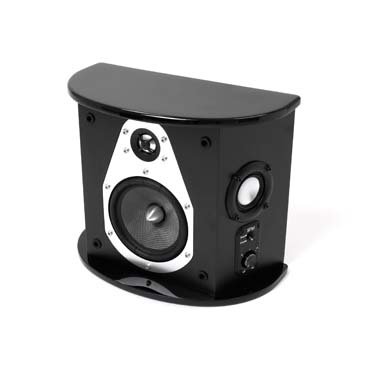

| Tweeter | One 1" tweeter with aluminum dome and neodymium motor with heat sink | |
| Included Accessories | Rubber bumpers, built-in 3/8" -16 threaded insert | |
| Midrange | Two 2" chambered midranges with aluminum cones and neodymium motors | |
| Woofer | One 5.25" woofer with kevlar cone and Ribbed Elliptical Surround | |
| Crossover Point | 400Hz, 3kHz | |
| Weight | 10 lbs / 4.6 kg | |
| Finish | Piano Black |
