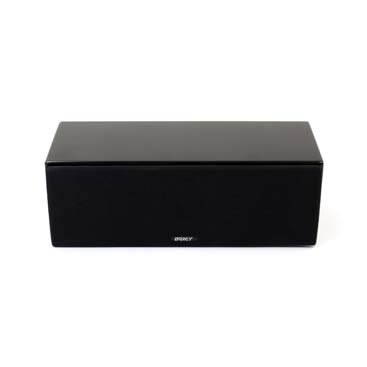

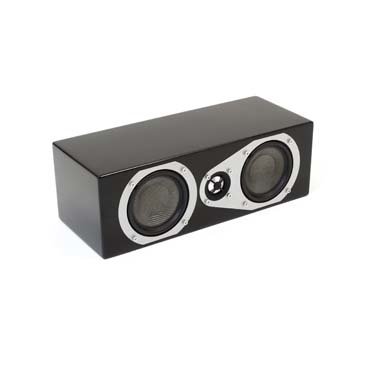

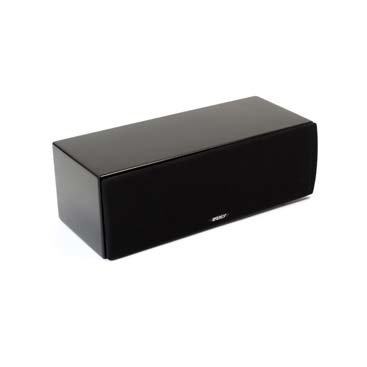

Center Speaker
Model: V-MINI-C
KEY FEATURES
Center channel speaker for realistic dialogue and music

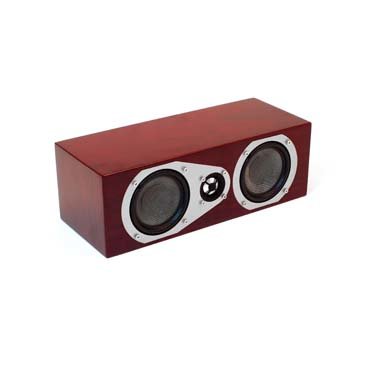

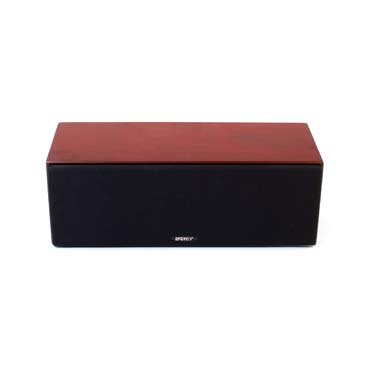

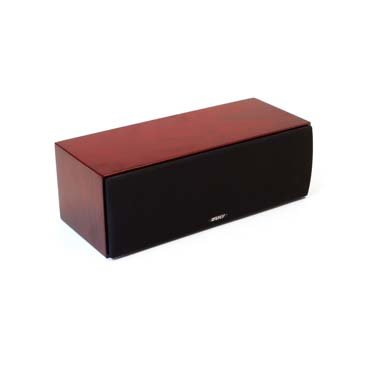

High gloss piano black or finished rosenut cabinet
Deep-reaching bass from two 4.5-inch woofers with patented Ribbed Elliptical Surround
Clear, accurate highs from aluminum dome tweeter for detailed listening
Proprietary Convergent Source Module (CSM) technology for increased dispersion
PRODUCT OVERVIEW
Available at Acoustic Sound Design , Sound Distribution
Features
Center channel speaker for realistic dialogue and music
High gloss piano black or finished rosenut cabinet
Deep-reaching bass from two 4.5-inch woofers with patented Ribbed Elliptical Surround
Clear, accurate highs from aluminum dome tweeter for detailed listening
Proprietary Convergent Source Module (CSM) technology for increased dispersion
Specifications
| System Type | 2 way center channel loudspeaker with shielded drivers, rear vented bass reflex design | |
| Impedance | 8 ohms nominal; 4 ohms minimum | |
| Frequency Response | 78Hz-25kHz ± 3dB | |
| Power Handling | up to 150 watts RMS | |
| Dimensions | 4.72" (12 cm) H x 13.78" (35 cm) W x 5.51" (14 cm) D | |
| Sensitivity | 93.5dB | |
| Inputs | Single 5-way nickel-plated binding post | |
| Tweeter | One 1" tweeter with aluminum dome and neodymium motor | |
| Included Accessories | Rubber bumpers | |
| Woofer | Two 4.5" woofers with kevlar cone and Ribbed Elliptical Surround | |
| Crossover Point | 2.5kHz | |
| Weight | 9 lbs / 4.1 kg | |
| Finish | High Gloss Black & Finished Rosenut |
